RockFLEET Assured Specification
Communications​
RockFLEET Assured is available in NMEA 0183 and NMEA 2000 versions.
| NMEA 0183 version | NMEA 2000 version | |
|---|---|---|
| Interfaces | RS-485-based RX and TX with full RockBLOCK Pro AT command set support | NMEA 2000 communication between the Above Deck Unit and Below Deck Unit only. |
| IMT | Position and other data reports at a set interval or on request from Cloudloop Device Manager. IMT messages can also be sent using AT commands over serial, with data transfer packet size flexible from 25 to 100,000 bytes. | Position and other data reports at a set interval or on request from Cloudloop Device Manager. IMT messages cannot be sent using AT commands over serial. |
| APNT | Integrated Iridium PNT module | Integrated Iridium PNT module |
| Supported Messages | Position reports, alerts (geofence/power/tamper as configured), and additional operational payloads (size/rate profile configurable) | Position reports, alerts (geofence/power/tamper as configured) |
The NMEA 0183 model uses the shared RockBLOCK Pro command set. Browse the RockFLEET Assured AT command reference →
Physical​
The Above Deck Unit is the RockFLEET Assured antenna assembly. Below Deck Unit is the general term for equipment installed below deck; depending on the selected bundle, this can be the standalone Chart Plotter, the Chart Plotter in the Rapid Deploy case, or the Power Hub.
The supplied below-deck equipment depends on the selected bundle:
- Full bundle: a standalone Raymarine AXIOM® 9 Chart Plotter and a Power Hub.
- Rapid Deploy bundle: a Raymarine AXIOM® 9 Chart Plotter fitted inside an Explorer rugged case.
- NMEA 0183 or NMEA 2000 stand-alone bundle: a Power Hub for connection to compatible third-party equipment.
The dimensions below identify each physical component separately.
| Above Deck Unit | Standalone Chart Plotter | Rapid Deploy Chart Plotter | Power Hub | |
|---|---|---|---|---|
| What this refers to | RockFLEET Assured antenna assembly | Raymarine AXIOM® 9 Chart Plotter supplied with the Full bundle | Raymarine AXIOM® 9 Chart Plotter fitted inside an Explorer 2717.G E case for the Rapid Deploy bundle | Ground Control below-deck power and communications junction box supplied with the stand-alone and Full bundles |
| Size | 201mm diameter x 125mm high | 244.08 x 157.78 x 178mm (W x H x D, surface/flush mounted, including cable clearance) | 300 x 270 x 194mm | 132 x 56 x 35mm, excluding connectors |
| Mounting | Antenna mounting bracket | For trunnion mounting, allow 265.03 x 187.81 x 178mm (W x H x D, including cable clearance) | Portable rapid-deployment case | Mounting-hole centres: 122 x 40mm; four 4mm diameter holes |
| Weight | 1,460g (antenna + mounting bracket) | 2.05kg | 4.85kg | 0.15kg |
| Form factor | UV-stable plastic radome | Standalone Chart Plotter display | Rugged rapid-deployment case | Compact power and communications enclosure |
For the Chart Plotter's complete mounting requirements, see the Raymarine AXIOM® 9 physical specifications. See RockFLEET Assured Power Hub for connector and wiring details.
Dimensional drawings and 3D CAD​
RockFLEET Assured 2D drawing (pdf)
RockFLEET Assured 3D CAD (STEP)
Environmental​
| Above Deck Unit | Rapid Deploy Chart Plotter and case | |
|---|---|---|
| Ingress | IP67 | IP20 (Indoor use only) |
| Operating Temperature | -40°C to +70°C, <95% RH | 0°C to +40°C, <95% RH |
Electrical & Power​
| Above Deck Unit | Rapid Deploy Chart Plotter and case | |
|---|---|---|
| Supply voltage | Operating range 15-24V DC (the Rapid Deploy Chart Plotter assembly supplies 15V DC) | External supply voltage 24V DC |
| Power consumption | 20W *See note | 30W (10W Chart Plotter + 20W Above Deck Unit) *See note |
| Battery backup | Optional 12Ah LiFePO4 battery for up to four days of standalone operation | None |
Power consumption is absolute peak during Iridium Transmit. Idle and Active measurements to follow soon.
Cable and connector specification​
| Above Deck Unit end cable-mount socket | Multicomp Pro MP007698 |
| Below-deck equipment end cable-mount plug | Multicomp Pro MP007706 |
| Recommended power/data cable between the Above Deck Unit and below-deck equipment | Tensility 30-02485 6 way cable: two 20AWG power conductors and two data pairs |
| Pin | NMEA 0183 function | NMEA 2000 function | Ground Control Custom cable (1/5/26 onwards) | Tensility 30-02485 Colours (LEGACY) |
|---|---|---|---|---|
| 1 | Power + | Power + | Red | Red |
| 2 | Power - | Power - | Black | Black |
| 3 | RS4xx TX+ | CAN H | Brown | Blue |
| 4 | RS4xx TX- | CAN L | Orange | White (paired with Blue) |
| 5 | RS4xx RX+ | n/a | Yellow | Green |
| 6 | RS4xx RX- | n/a | Green | White (paired with Green) |
| 7 | Shield drain | Shield drain | Bare wire | Bare wire |

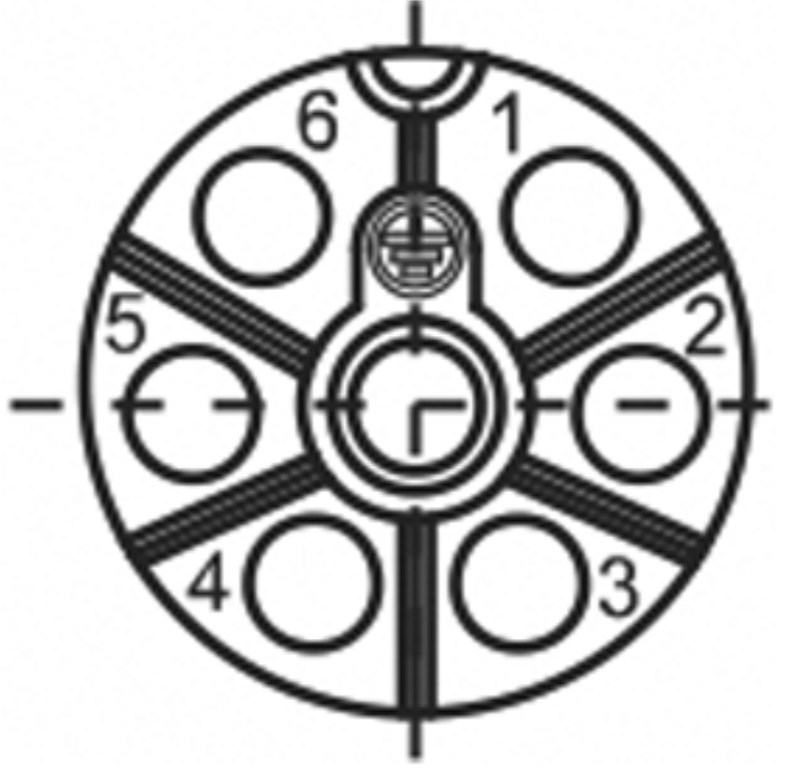

View from solder cup side of the receptacle.
Dynamic position accuracy varies by latitude. Iridium satellites have closer spacing at higher latitudes, resulting in improved accuracy nearer the poles.
| Location | Latitude | Median Accuracy | 95th/97.5th Percentile |
|---|---|---|---|
| Norway | 69° N | 25m | <50m (95%) |
| Red Sea | 19° N | 42m | <200m (97.5%) |
Rapid Deploy Chart Plotter and case further information​
- This rapid-deployment option is supplied fitted with a Raymarine AXIOM® 9 Chart Plotter.
- The Chart Plotter is housed in an Explorer 2717.G E protective case.
- Removable lid.
- Powered via 2.1mm barrel connector socket. Centre pin positive.
- 3A 5x20mm replaceable fuse.
- External supply voltage: 24V DC. Supplied with a mains-to-24V DC adapter with UK, US, EU and AU plug options.
- Combined Chart Plotter and Above Deck Unit power consumption: 30W.
- 6+PE WA female panel-mount connector (internal thread) for 15V DC power and NMEA 2000 communication with the Above Deck Unit.
- NMEA 2000 is used only for communication between the Above Deck Unit and Rapid Deploy Chart Plotter. It does not provide connectivity to other systems.
- Built-in 24V to 15V DC-to-DC converter.
