Introducing RockBLOCK 9704+
RockBLOCK 9704+ takes all the features of RockBLOCK 9704, and adds a fully watertight enclosure, onboard ublox MAX-M10S GNSS, simplified IO, wide operating voltages for power and control, and dual RS-232 ports for Iridium and GNSS.

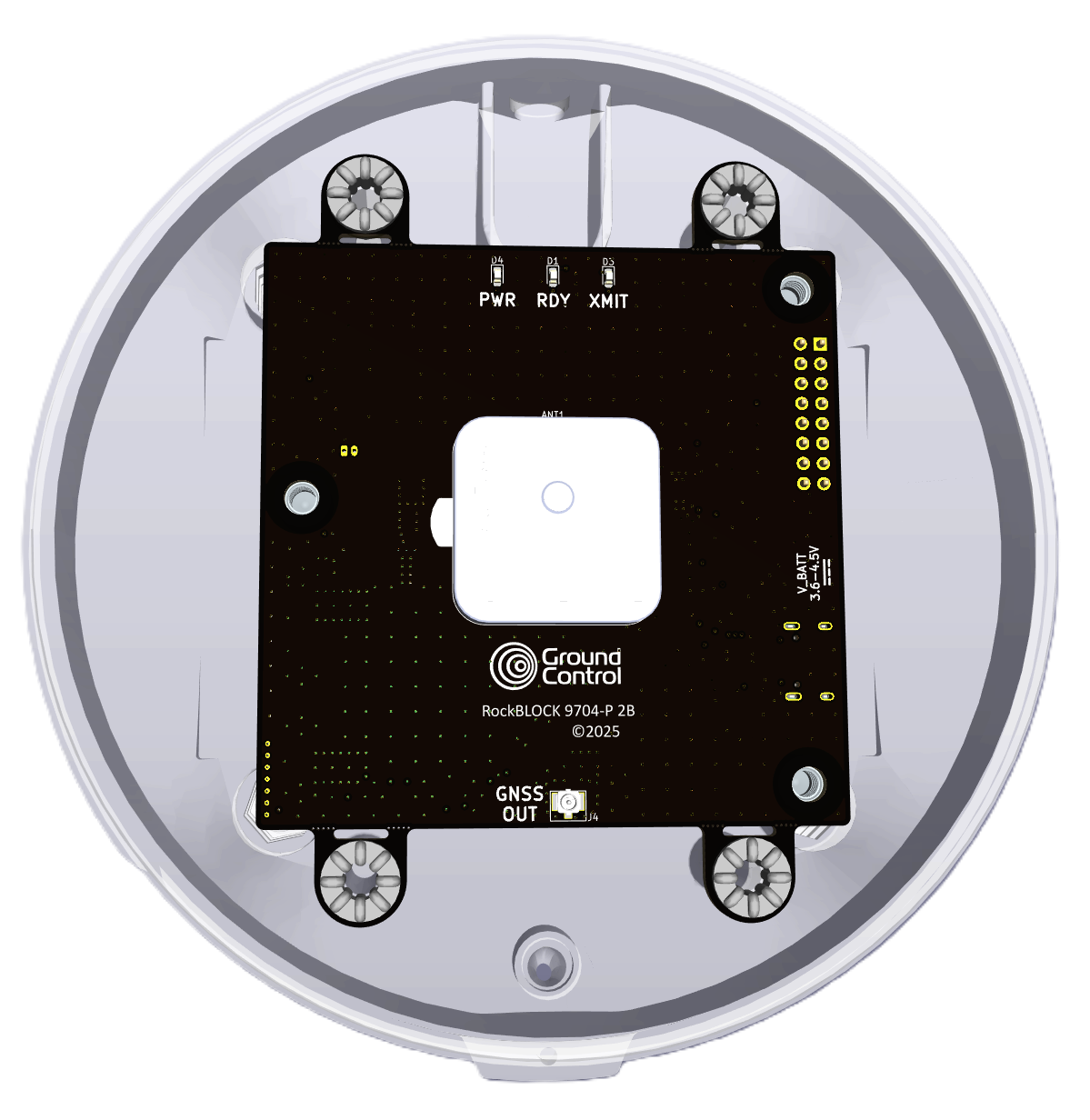

Open case top view - RockBLOCK 9704-ANT mounted in a weatherproof enclosure

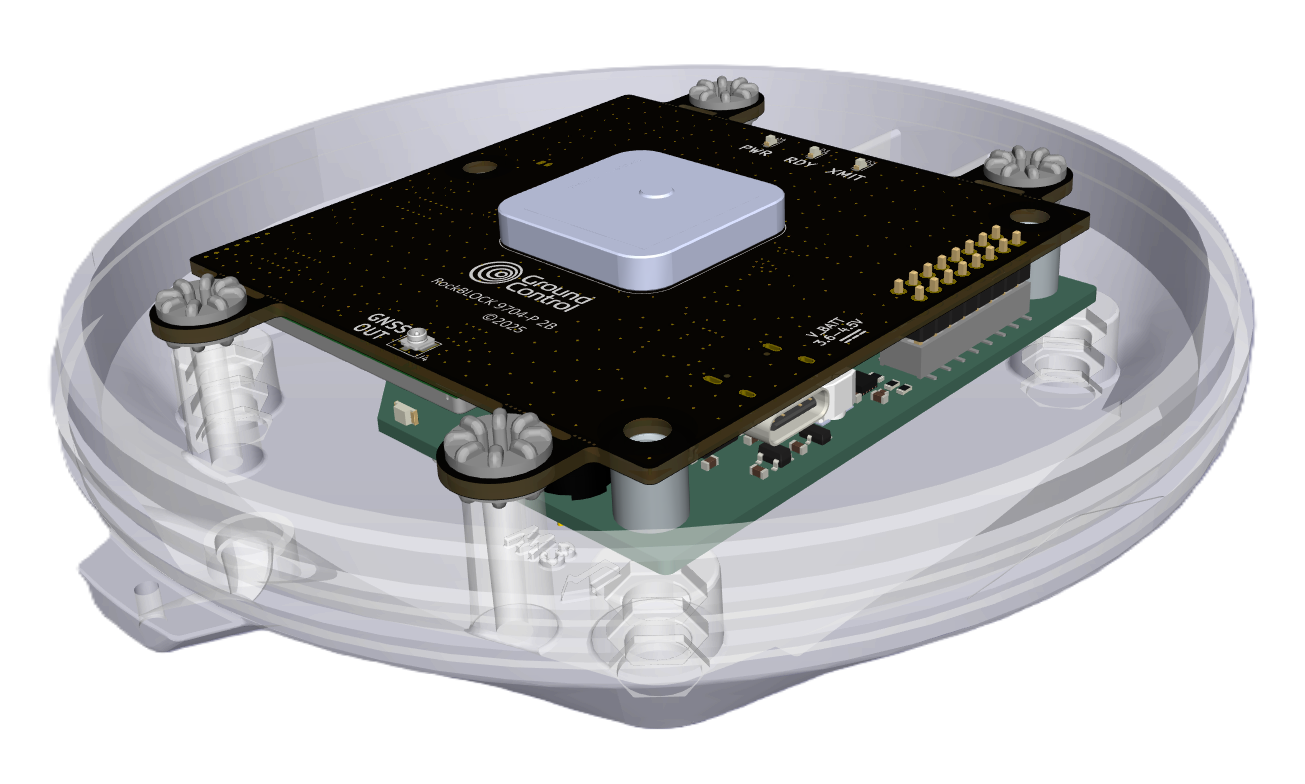

Open case 3-Quarter top view

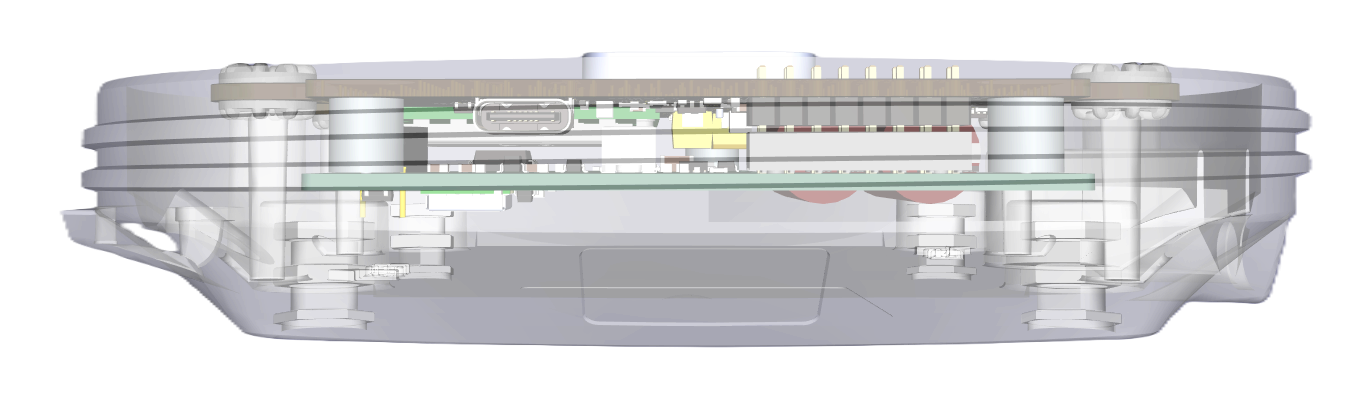

Through case side view

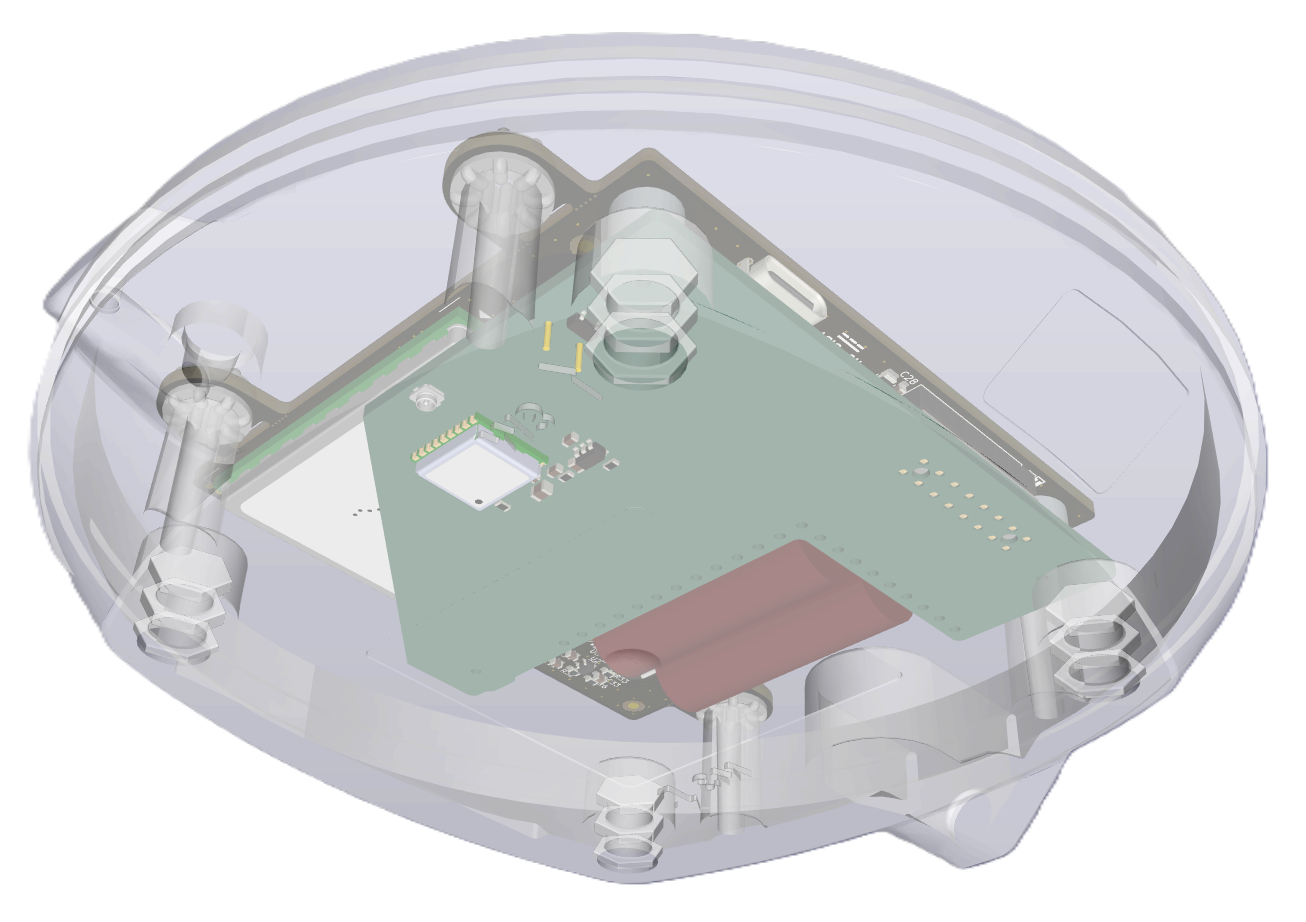

Through case 3-Quarter bottom view

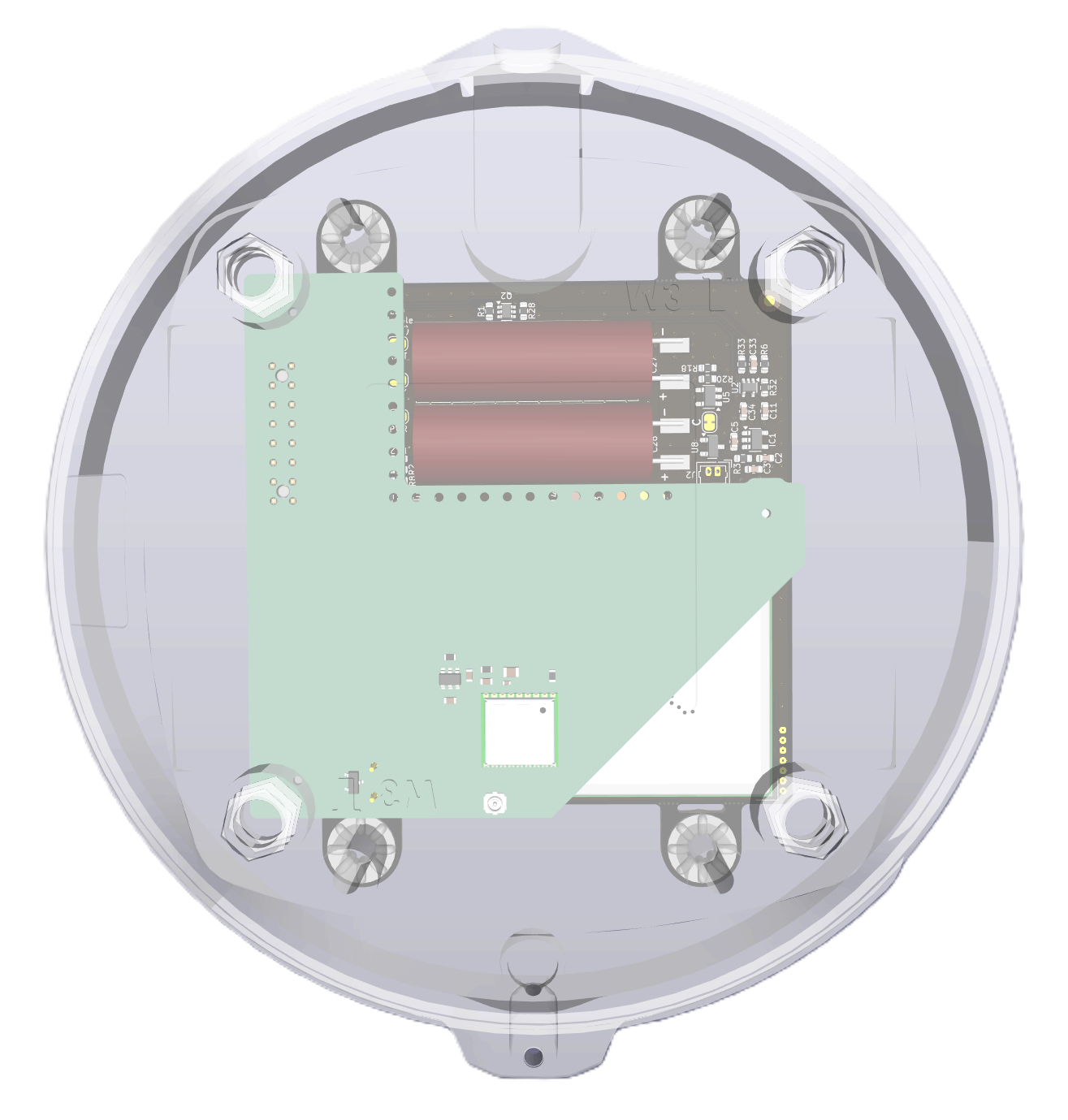

Through case bottom view - RockBLOCK 9704-ANT addon board carrying Power Supplies, Transceivers, and GNSS
Electrical & Power
Indicative power consumption vallues only. Figures for specific use cases may differ significantly depending on individual device configurations.
| Voltage | 7.0 - 30.0V DC |
| Power consumption (Minimum) | < 100mW* (9704 & GNSS sleep mode) |
| Power consumption (Position Only) | < 140mW* (9704 sleep, continuous GNSS operation) |
| Power consumption (Idle) | ~160mW (GNSS off, 9704 registered with network, listening, ready to transmit/receive) |
| Power consumption (Idle & Position) | ~200mW (continuous GNSS operation, registered with Iridium network, listening, ready to transmit/receive) |
| Power consumption (Transmitting) | ~1.6W |
| Power consumption (Inrush Limit) | < 5.0W |
| Cable Connections | 8-core 0.25mm2 cable |
Communication
RockBLOCK 9704+ has two RS-232 ports. The default baud rate of each device can be changed if desired.
| Setting | 9704 | GNSS |
|---|---|---|
| Baud | 230400 | 9600 |
| Data Bits | 8 | 8 |
| Parity | None | None |
| Stop Bits | 1 | 1 |
Signal Thresholds
The host device should be compatible with the following I/O voltages to ensure trouble-free operation of the RockBLOCK 9704+
| RB9704+ Pin | V Min. | V Max. | I Max. (mA) |
|---|---|---|---|
| DC Power | 7.0 | 30.0 | 1000 |
| Logic In LOW | 0.0 | 0.4 | -0.3 |
| Logic In HIGH | 2.5 | 30.0 | 0.3 |
| RS-232 In LOW | -15.0 | 0.6 | -5 |
| RS-232 In HIGH | 2.0 | 15.0 | 5 |
| RS-232 Out LOW | -5.4 | -5.0 | -30 |
| RS-232 Out HIGH | 5.0 | 5.4 | 30 |
Pinout
| Cable Core | Function | Type | Direction |
|---|---|---|---|
| Black | Ground | GND | GND |
| Red | Positive input voltage | Power | Input |
| Blue | Iridium 9704 RS-232 TX | Data | Output |
| Pink | Iridium 9704 RS-232 RX | Data | Input |
| White | Iridium 9704 Enable | Logic | Input |
| Green | uBlox M10 GNSS RS-232 TX | Data | Output |
| Yellow | uBlox M10 GNSS RS-232 RX | Data | Input |
| Grey | uBlox M10 GNSS Enable | Logic | Input |
Functional Modes
The RockBLOCK 9704+ can be used as a standalone ruggedised RockBLOCK 9704, Standalone GNSS, or both together. The table below outlines the functional modes.
| Function | Power In | 9704 Enable | GNSS Enable |
|---|---|---|---|
| Off | LOW | X | X |
| Sleep | > 7.0V | < 0.4V | < 0.4V |
| 9704 Only | > 7.0V | > 2.5V | < 0.4V |
| GNSS Only | > 7.0V | < 0.4V | > 2.5V |
| 9704 & GNSS | > 7.0V | > 2.5V | > 2.5V |
- When both 9704 and Iridium are enabled, during an Iridium transmission the 9704 module will actively gate the internal antenna between 9704 and GNSS. During periods of heavy continuous data transmission, this may cause temporary delays in GNSS position update.
Using RockBLOCK 9704+
Powering
When RockBLOCK 9704 is first connected to power, the onbaord capacitors will need to charge before the 9704 is ready to communicate. If the unit has been unpowered for a period of days, this can take up to 40 seconds.
The GNSS module is not subject to the delay requirement, and will be ready to communicate over RS-232 straight away, however it will not be able to start receiving a position until the 9704 capacitors are charged.
Communication
RockBLOCK 9704+ can be used with the Ground Control RockBLOCK 9704 software libraries. Please follow the instructions for connecting via USB, and select your RS-232 adapter as the serial device.
Communication with the ublox MAX-M10S GNSS is possible using either NMEA (default 4.11) or UBX protocols. Please consult the ublox Interface Manual for full details.
For the purposes of testing, the ublox software u-center 2 can be used to communicate with the onboard GNSS module.
