Cloudloop Insights

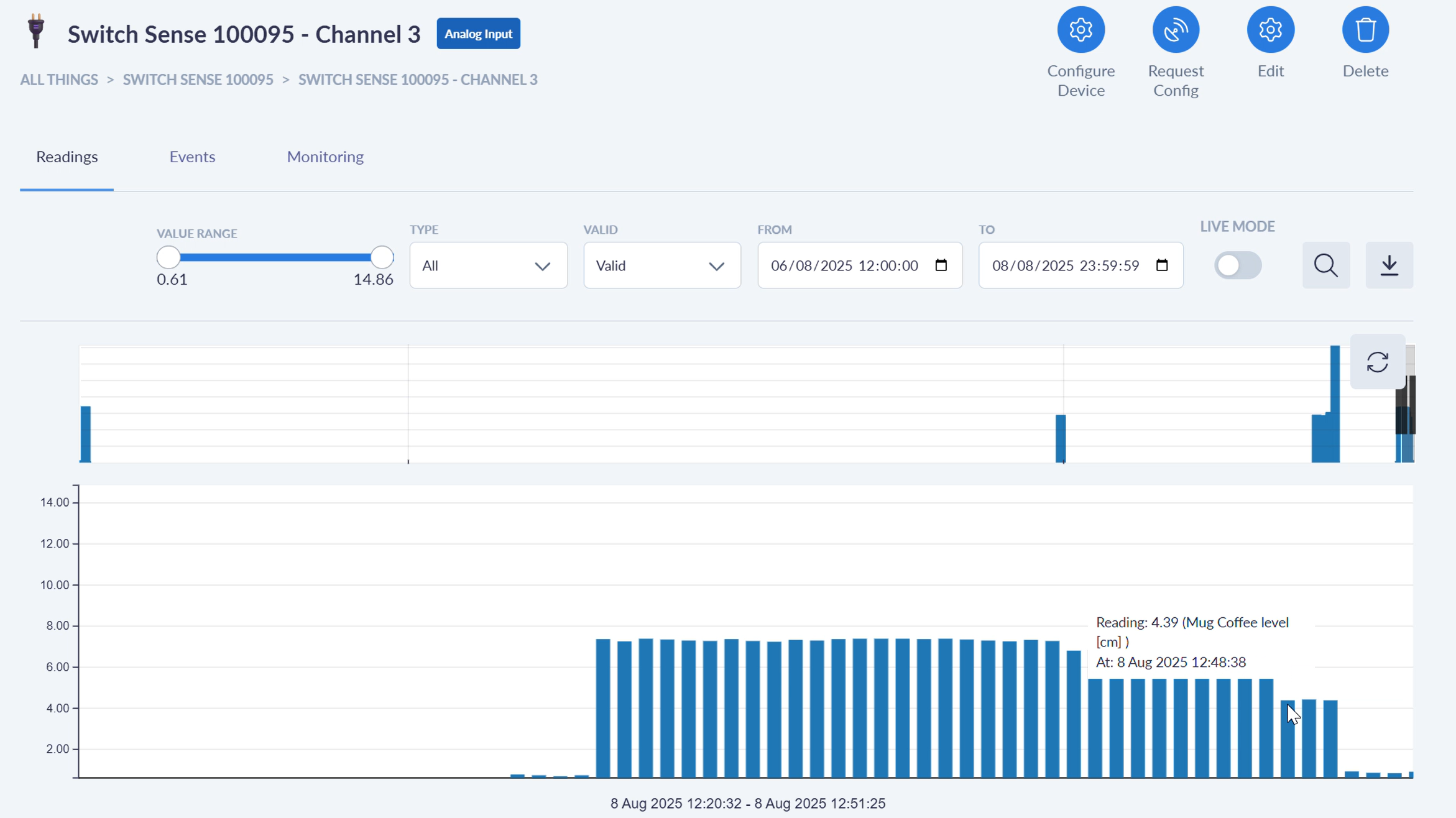

Cloudloop Data includes an insight feature to display time based data from each of the RTU channels. The Readings UI gives you the ability to:

• Adjust y axis range in view.
• Filter on the message type.
• Filter on message validity. (Allows the user to remove any outlier values from the plot.)
• Select the time period over which the data is displayed.
• Turn Live Mode ON/OFF - When ON the plot will be refreshed every time a new value arrives for that channel.
• Drag bars to magnify the time base for areas of interest.
• View incoming messages.

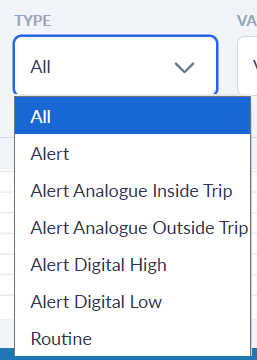

Note that the alerts referred to in the message type filter are those that are generated by the RTU hardware rather than the monitors set within Cloudloop.

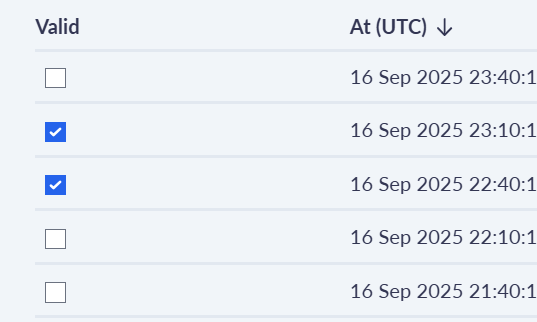

The VALID message selection will allows the user to select/deselect individual values from the list and either plot them individually or exclude them out of the overall plot.
